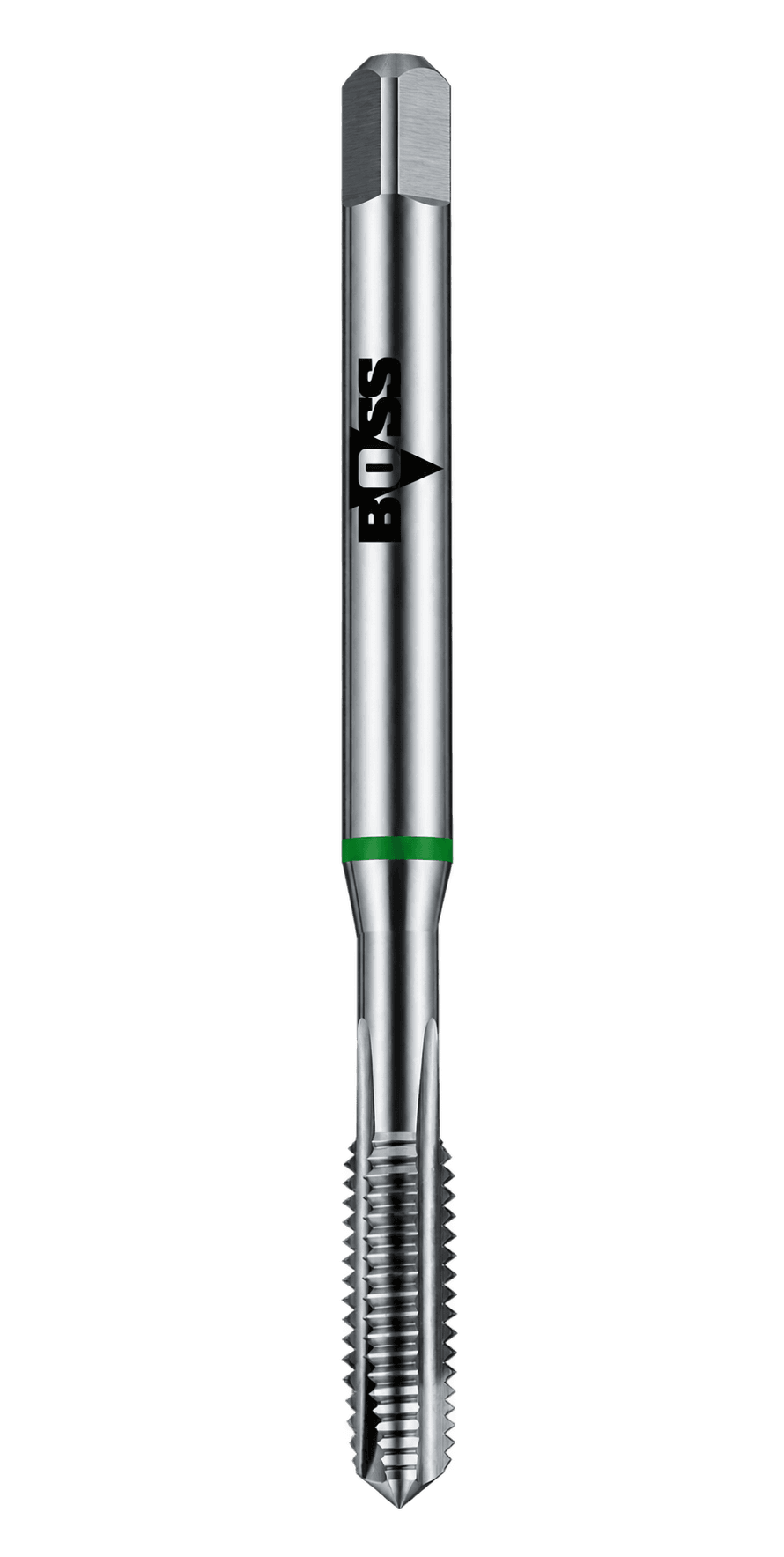

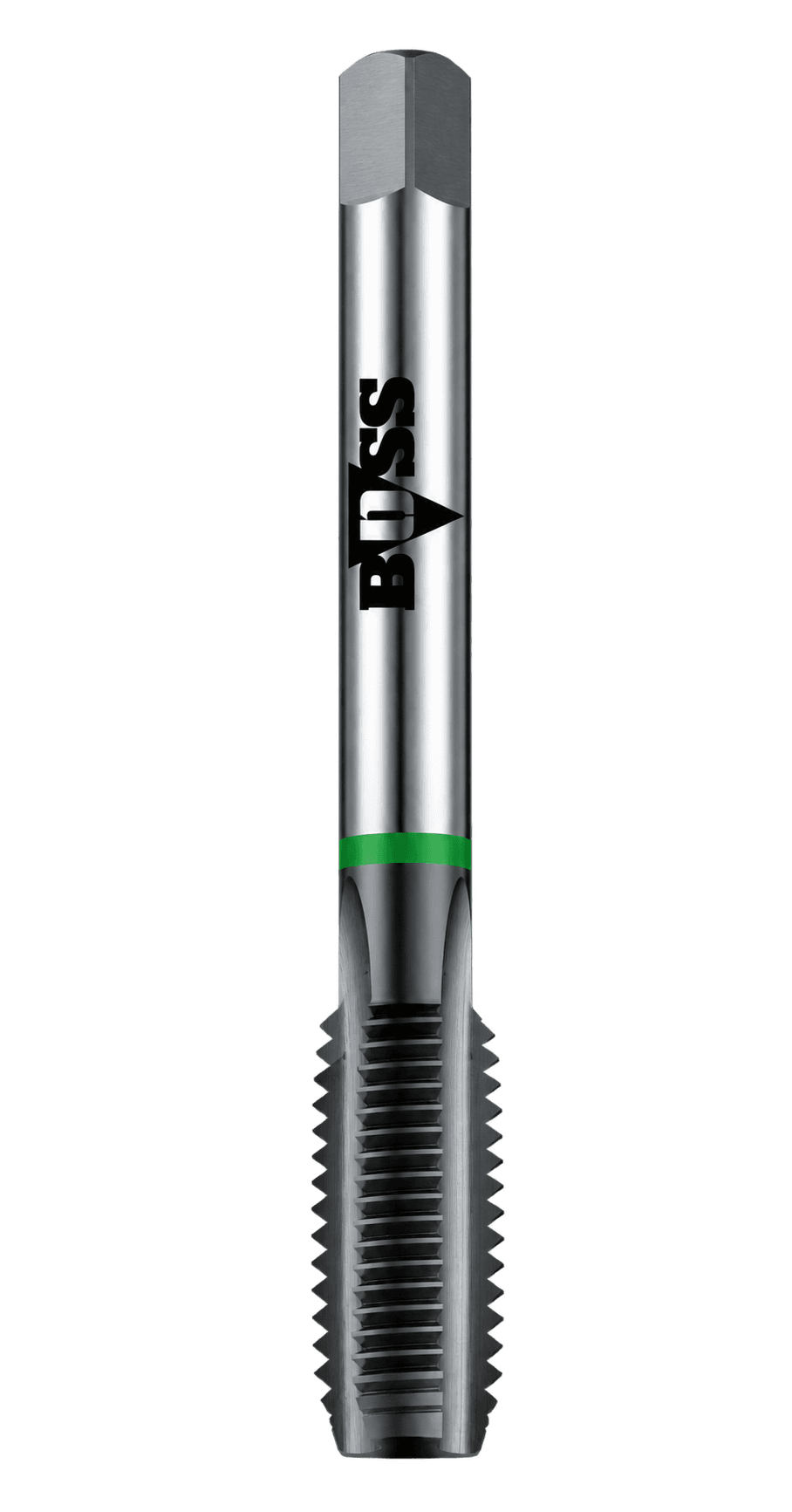

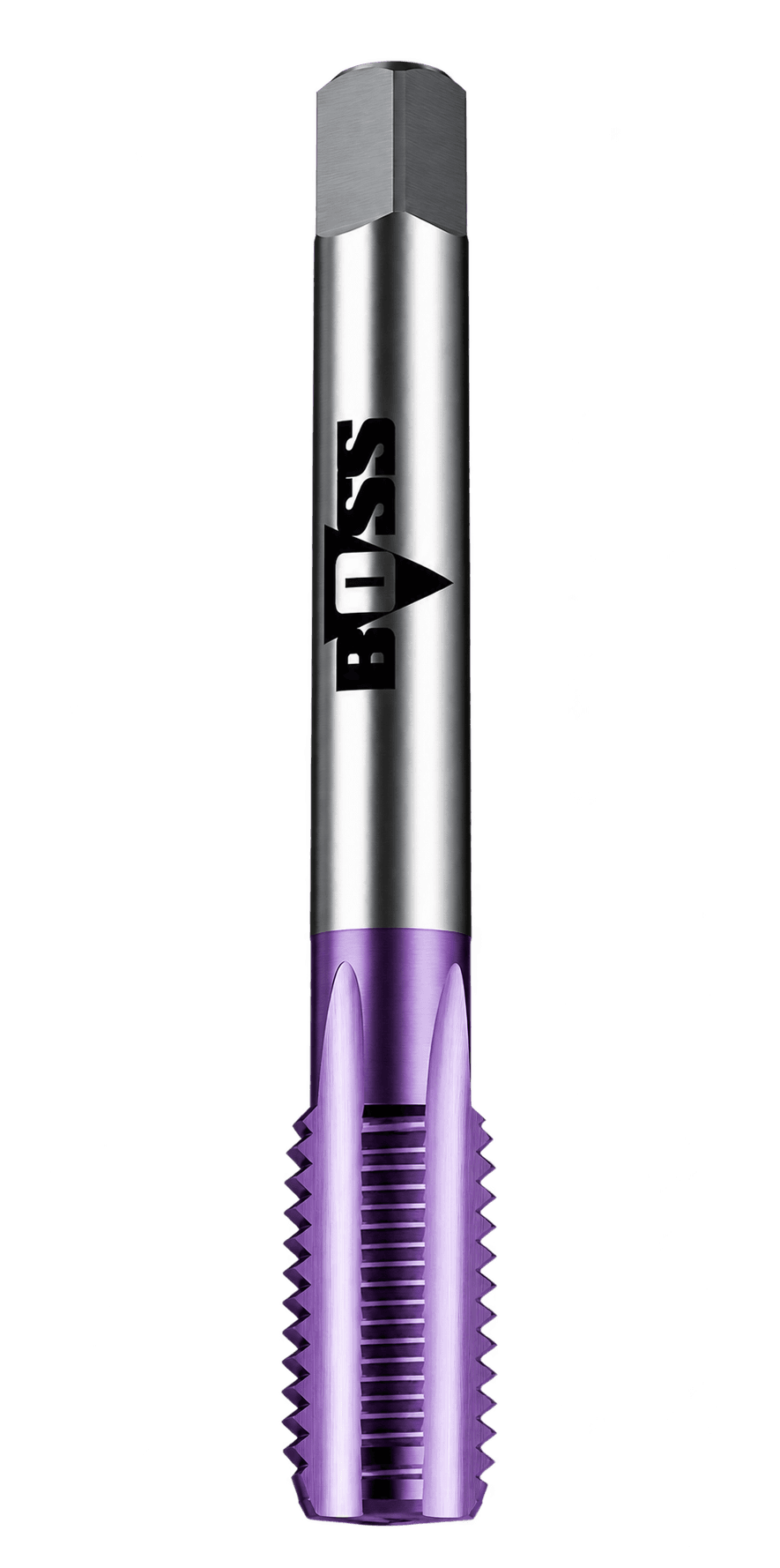

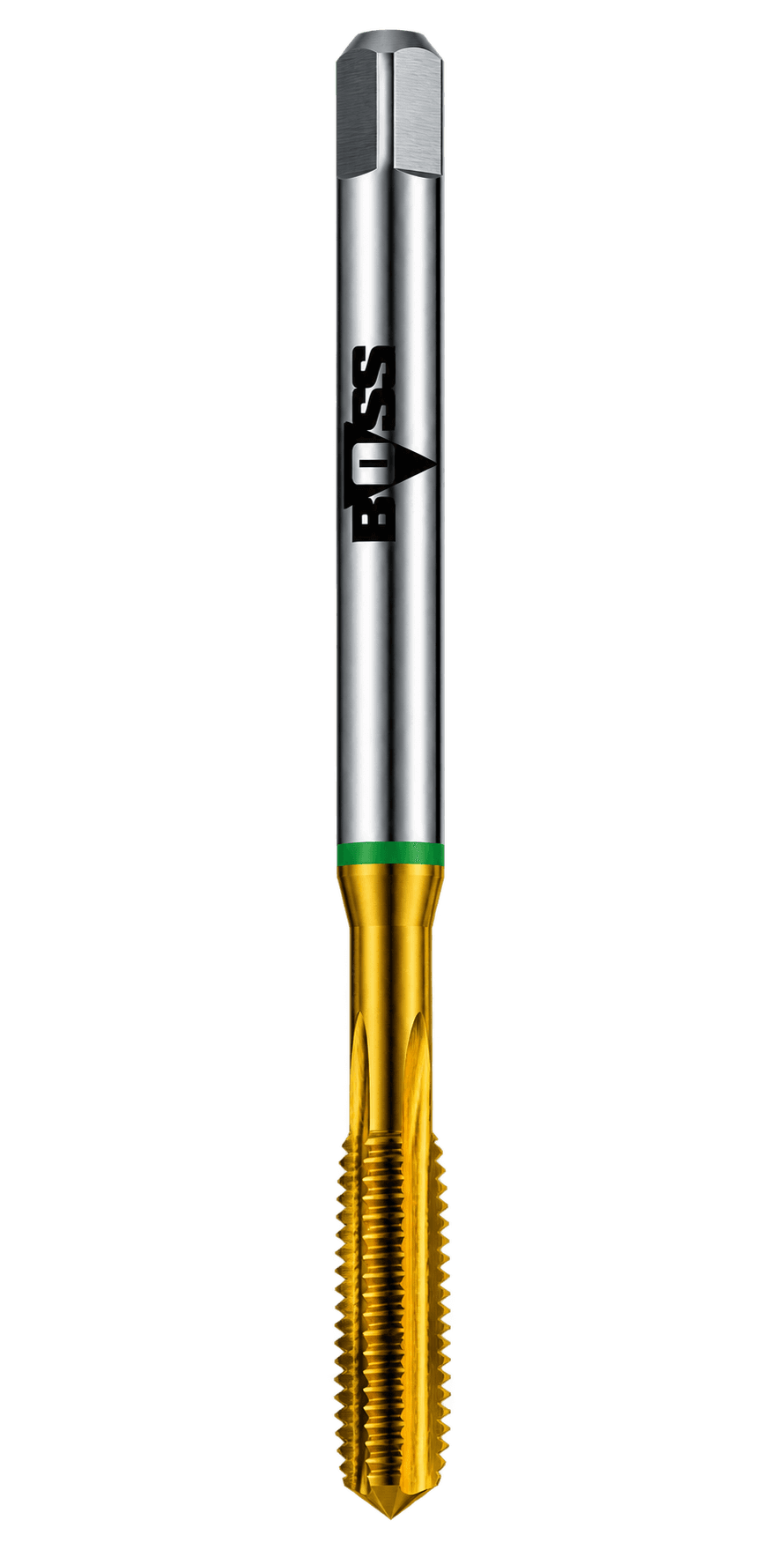

Illustrative image; not for confirming a model or configuration.
BOSS POT taps feature Straight Flute, Spiral Point and Form B 4–5 threads chamfer geometry, optimized for through-hole tapping. Forward chip evacuation helps reduce chip packing and improve tool life.
BOSS POT Taps – Spiral Point Taps are machine cutting taps from BOSS, a German thread-tool brand, developed for stable internal threading and effective chip control.
According to the BOSS catalogue, the representative configuration is Straight Flute, Form B, with Spiral Point, 4–5 Threads Chamfer. The Straight Flute combined with the Spiral Point geometry directs chips forward during tapping, making the design particularly suitable for through-hole applications.
This is the key distinction between POT and SFT Spiral Flute Taps. While SFT is designed to guide chips out of blind holes through its spiral flute, POT uses a Spiral Point to push chips forward, making it suitable for through-hole threading.
The Form B, 4–5 Threads Chamfer configuration distributes the initial cutting load across the lead threads and supports stable thread formation. BOSS classifies different chamfer forms from Form A to Form E according to hole type and machining requirements.
Efficient forward chip evacuation is particularly important in production machining. By directing chips away from the cutting zone, the POT geometry helps reduce chip packing, chip recutting and abnormal cutting torque, contributing to more stable tapping and reduced risk of tool failure.
BOSS also provides different surface treatments depending on the tool code and application, including TiN, TiCN and VAP. The catalogue shows different coating configurations according to workpiece material and machining requirements.

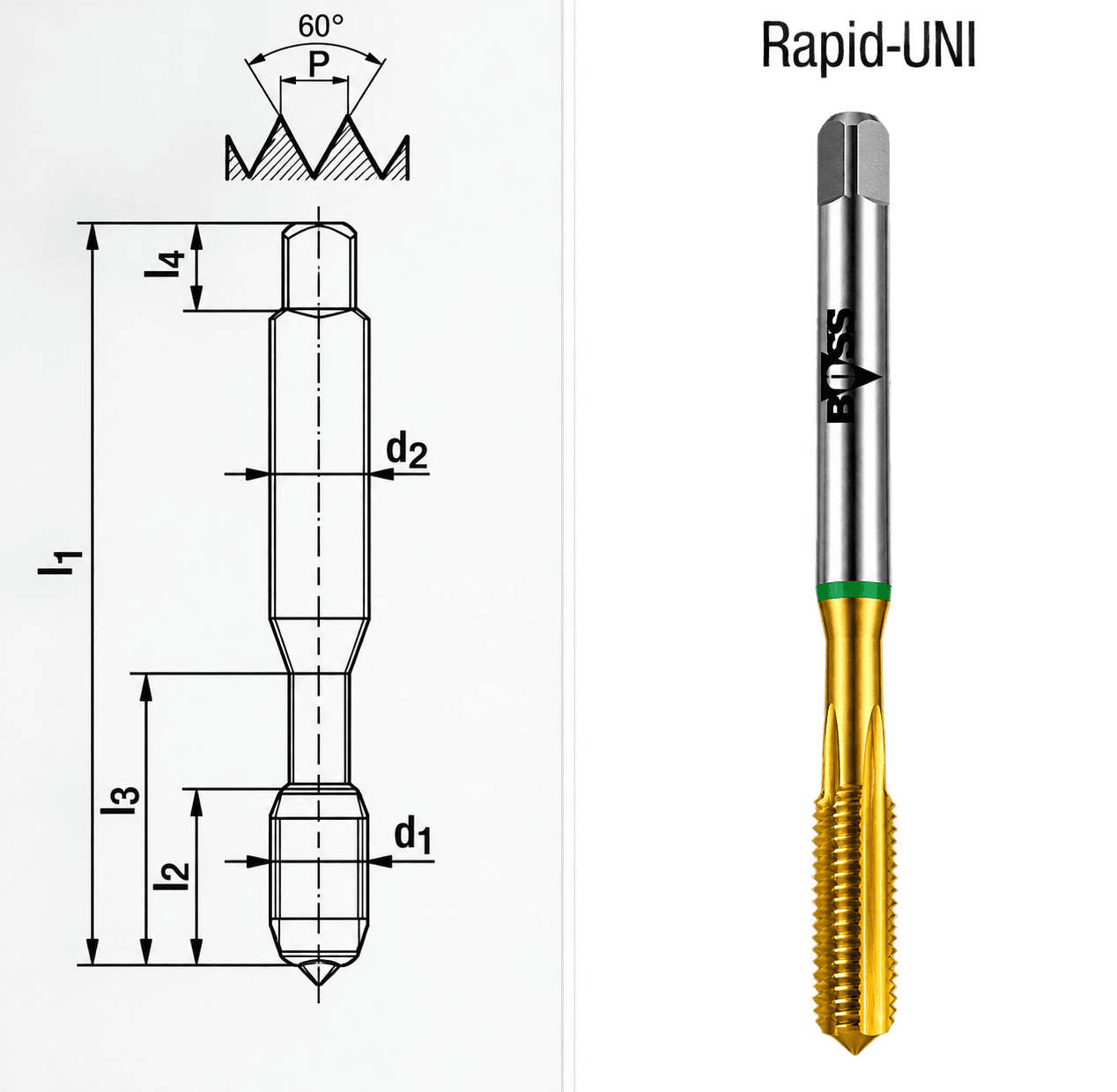

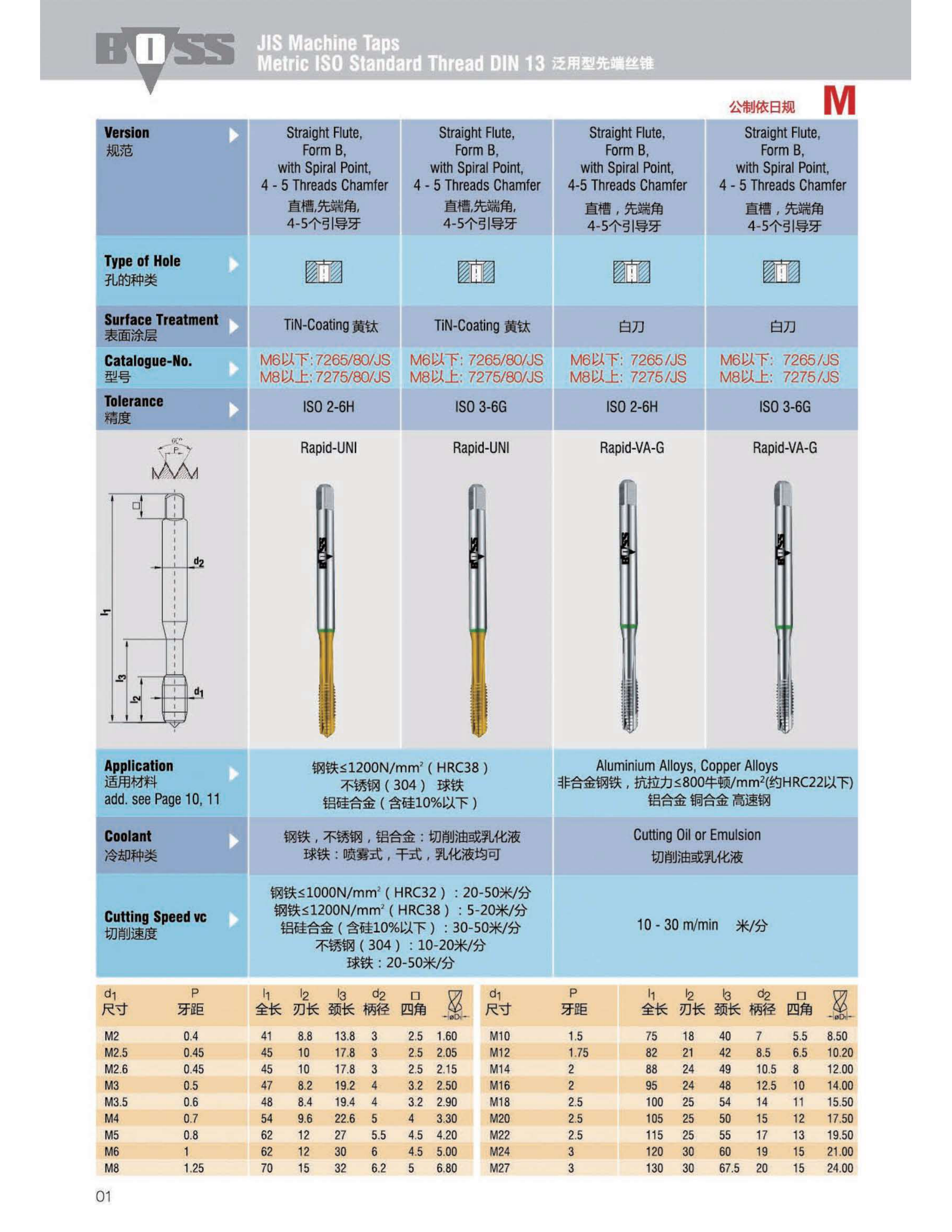

BOSS also offers JIS Machine Taps – Metric ISO Standard Thread DIN 13, alongside its DIN/metric range. The JIS catalogue specifically lists Straight Flute with Spiral Point configurations for JIS applications.
Tô Gia supplies BOSS POT taps according to thread size, pitch, hole type, workpiece material, chamfer, tolerance, coating and cutting conditions.
Applications
Machine tapping
Through-hole threading
Carbon and alloy steels
Stainless steels
Cast iron
Aluminum alloys
Copper alloys
Special alloys depending on series
Precision machining
Automotive components
Electronic components
Mass production
Confirm the final configuration, compatibility and documentation against manufacturer resources before ordering.
Specifications
BOSS Spiral Point Taps – POT Taps - Specifications
Specification
Value
Brand
BOSS
Brand Origin
Germany
Product Group
Cutting Taps
Product Series
Spiral Point Taps – POT
Geometry
Straight Flute + Spiral Point
Machining Method
Machine Tapping
Chip Direction
Forward chip evacuation
Main Hole Type
Through Holes
Representative Chamfer
Form B
Threads Chamfer
4–5 Threads
Standards
Metric / DIN / JIS, depending on model
JIS
JIS Machine Taps, depending on model
Workpiece Materials
Steel, stainless steel, cast iron, non-ferrous metals, special alloys
Tool Material
HSS-E, depending on model
Surface Treatment
TiN, TiCN, VAP, depending on model
Thread Tolerance
Model dependent
Sizes
According to individual tool code
Main Application
Internal threading, especially through holes
Confirm the final configuration, compatibility and documentation against manufacturer resources before ordering.
