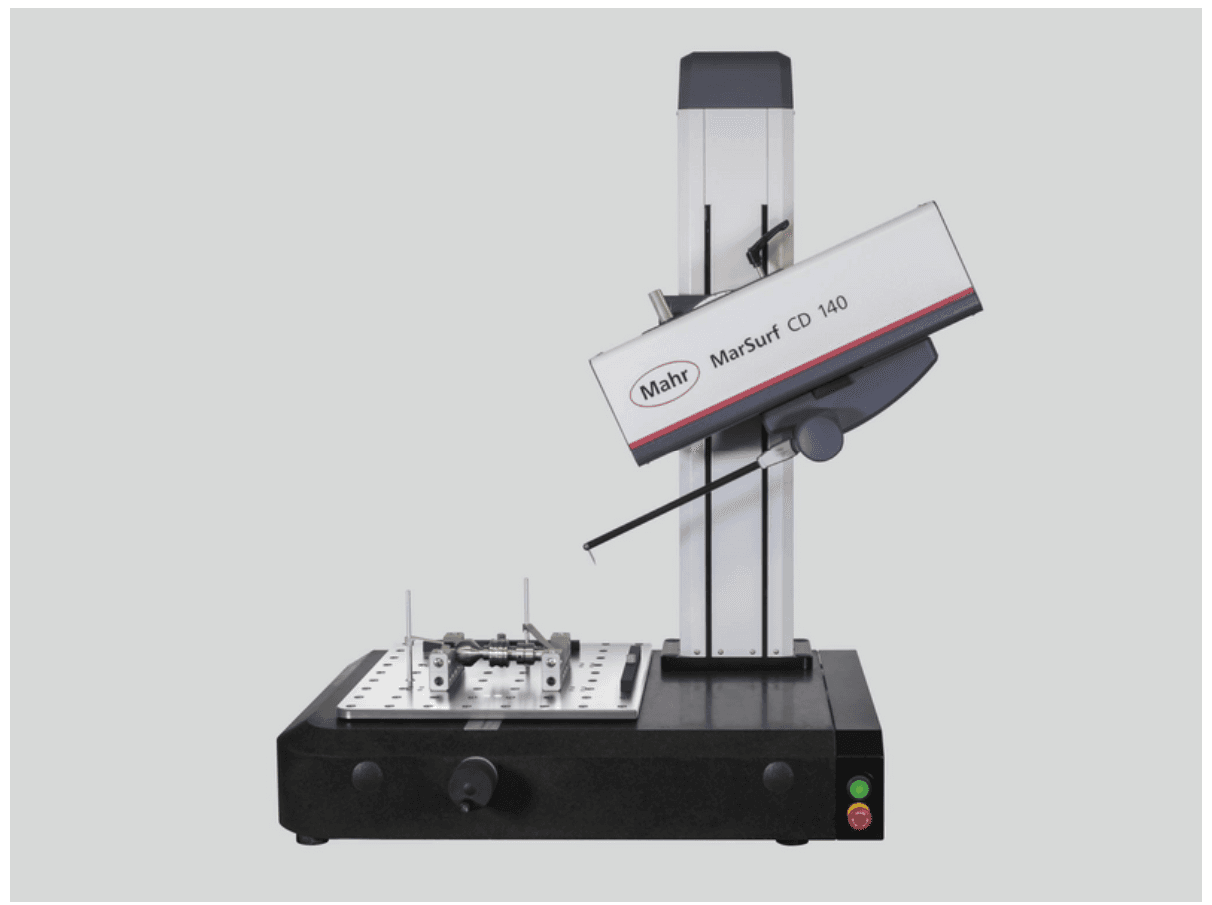

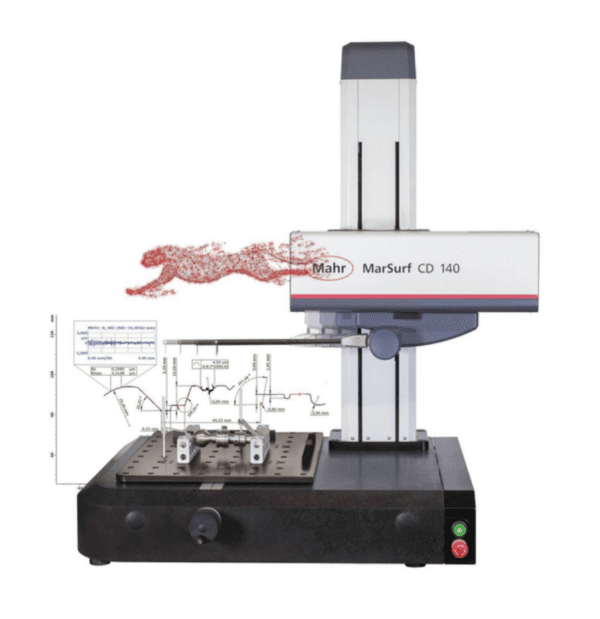

Mahr MarSurf CD 140 is a precision contour measuring station for inspecting profiles and geometric features of mechanical, automotive, medical and precision-engineered components.
Key specifications
Brand
Mahr
Product Name
MarSurf CD 140
Model
6820001
Equipment Type
Contour measuring station
Contact us to choose a configuration
Price, stock and lead time are confirmed during consultation.
The Mahr MarSurf CD 140 is a professional contour measuring station designed for high-precision geometric inspection. It provides a measuring path of up to 140 mm, high positioning speed and adjustable measuring force for flexible inspection of different workpieces.

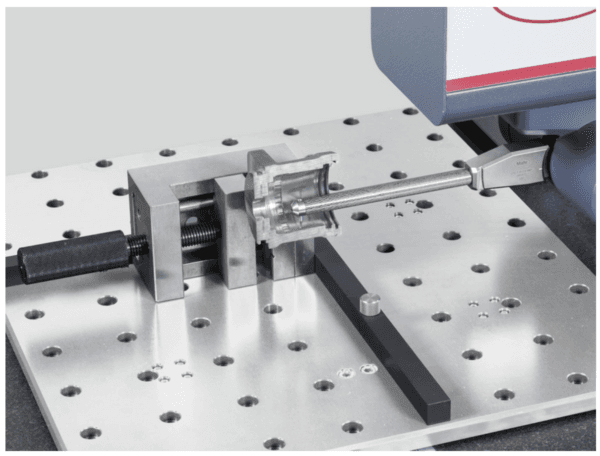

The system allows fast probe changes without tools through its magnetic probe mount and supports automatic probe arm detection. A large workpiece support plate and integrated TY adjustment provide flexible workpiece positioning.
The MarSurf CD 140 is suitable for measuring bearings, threads, threaded rods, ball spindles, shafts and racks, as well as components used in automotive and medical applications. Optional roughness measurement capability is also available.
Applications
Precision contour measurement.
Inspection of threads and threaded rods.
Measurement of bearings, shafts and racks.
Ball spindle inspection.
Automotive component inspection.
Steering, brake and transmission components.
Crankshafts, camshafts and cylinder heads.
Medical screws.
Hip and knee endoprostheses.
Dental implants.
Semi-automatic contour measurement close to production.
Confirm the final configuration, compatibility and documentation against manufacturer resources before ordering.
Specifications
Mahr MarSurf CD 140 – Contour Measuring Station - Specifications
Specification
Value
Brand
Mahr
Product Name
MarSurf CD 140
Model
6820001
Equipment Type
Contour measuring station
Resolution
Max. 6 nm
X-axis traversing length
0.1 – 140 mm
Traversing length Lt
0.1 – 140 mm
Guide deviation
0.35 µm / 60 mm; 0.40 µm / 140 mm
Measuring force
4 – 30 mN
Measuring speed
0.02 – 10 mm/s
X-axis positioning speed
0.02 – 200 mm/s
Z-axis positioning speed
0.02 – 50 mm/s
Probe system
Contour probe system
Probe arm length
210 / 350 / 490 mm
Measuring range with 350 mm arm
70 mm
Measuring range with 490 mm arm
Max. 100 mm
Operating temperature
15 – 40 °C
Max. workpiece weight
90 kg
Optional function
Roughness measurement from Rz 2 µm
Confirm the final configuration, compatibility and documentation against manufacturer resources before ordering.
